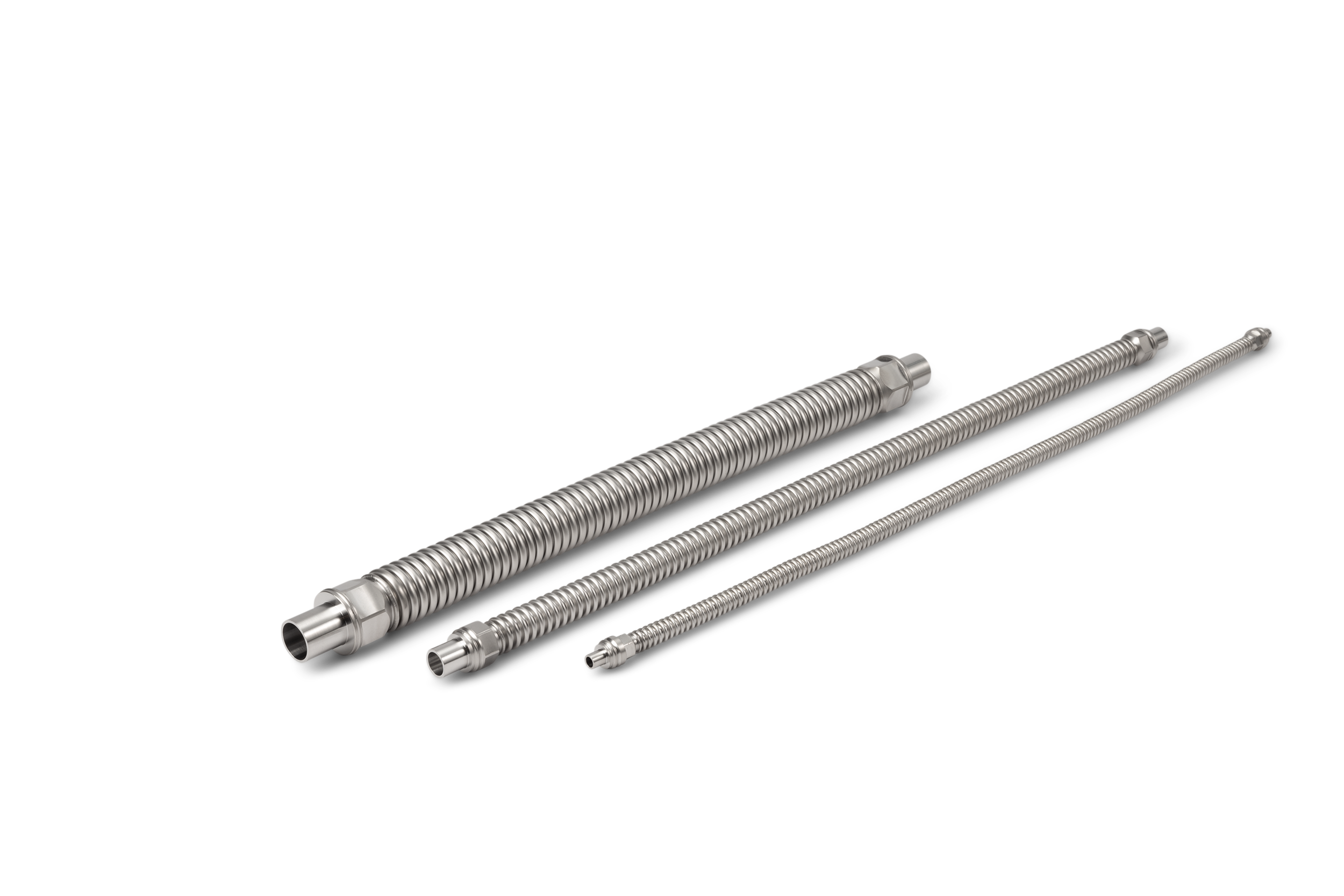

Hybrid PTFE

Hybrid PTFE
Hybrid PTFE

Hybrid PTFE

Key characteristics
Co-polymer PTFE Laminar flow No permeation Prevent Flow Induced Vibration Smooth bore Ultra High purity UV compatible Vacuum compatible
Braiding
Non-braided
Material
Hybrid Hose
Diameters available
DN6 to DN20
1/4"inch to 3inch
Temperature
-40 °C to 90 °C
Pressure range
Vacuum 0 Pressure
76
168
Medium
Liquid
Environment
Ambient & Vacuum
Show measures in:
Braiding:

Diameter
[DN]

6

10

12

20

Diameter
[inch]

1/4"

3/8"

1/2"

3/4"

Stub outside diameter [mm]

6.35

9.53

12.7

19.5

Stub wall thickness [mm]

0.89

0.89

1.24

1.65

Hose inner diameter [mm]

4.7

7.9

9.5

17.2

Hose outside diameter [mm]

9.8

16.2

18.6

28.3

Static bend radius [mm]

54

86

110

325

Dynamic bend radius [mm]

110

150

165

325

Max. allowable pressure at 20 °C [bar]

42

32

26

19

Burst pressure at 20 °C [bar]

168

128

104

76

Compliance

  • EN ISO 9001
  • EN ISO 10380 / ASME 31.3

Cleanliness

  • Standard deliveries: White room
  • Vacuum, Ultra high purity: possible upon request

Packaging

  • Each hose is bagged individually and boxed. Longer hoses are coiled, bagged and boxed.

Product tests

  • Helium leak test (1×10⁻⁵ std cm3/s)
  • Additional options: he leak test 1×10⁻⁹ std cm3/s
  • Outer corrugated hose: stainless steel 1.4404 (similar to AISI 316L)
  • Inner liner: PTFE T62 Smooth Bore

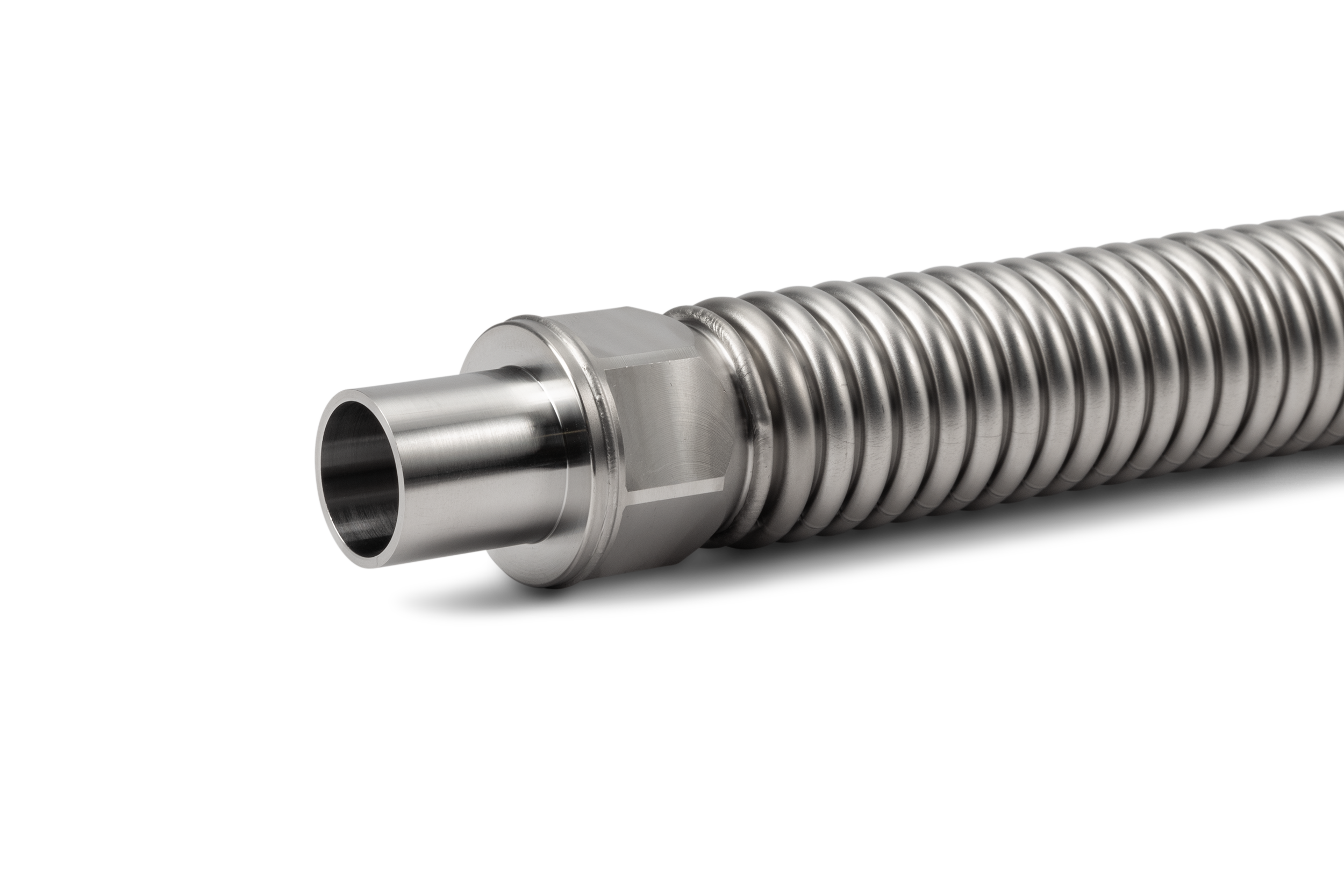

  • Tube-ends connection: stainless steel 1.4404 (similar to AISI 316L)
  • Tube-end connections according to ASTM A269
