Cobra Aero AS1946
Cobra Aero AS1946
Key characteristics
Anti-static, UV compatible
High abrasion resistancy
High pressure
Braiding
Single-braided
Material
PTFE Hose
Diameters available
DN6
to
DN32
1/4inch
to
1inch
Temperature
-55
°C
to
448
°C
Pressure
bar
to
bar
Medium
Liquid
Environment
Ambient & Vacuum
AS1946 qualification
Carbon lined PTFE
High pressure
Show measures in:
Braiding:
Diameter [DN]
DN6
DN8
DN10
DN12
DN15
DN20
DN25
DN32
Diameter [inch]
1/4
3/8
1/2
5/8
3/4
1
1 1/4
1 1/2
Hose inner diameter [mm]
5.64
7.82
10.19
12.57
15.67
22.02
28.58
34.93
Hose outside diameter [mm]
9.53
12.01
15.24
18.03
24.64
31.75
40.46
48.77
Static bend radius [mm]
38
64
74
84
102
127
305
356
Max. allowable pressure at 20 °C [bar]
Burst pressure at 20 °C [bar]
Compliance
- EN ISO 9001
- EN 9100
- AS1946, similar to ISO 10502:2012
Packaging
- Each hose is bagged individually and boxed. Longer hoses are coiled, bagged and boxed
Product tests
- Pressure proof test
- Weight analysis
Cleanliness
- In accordance with AS1946 standards
End connections
- Connections are based on customer specifications

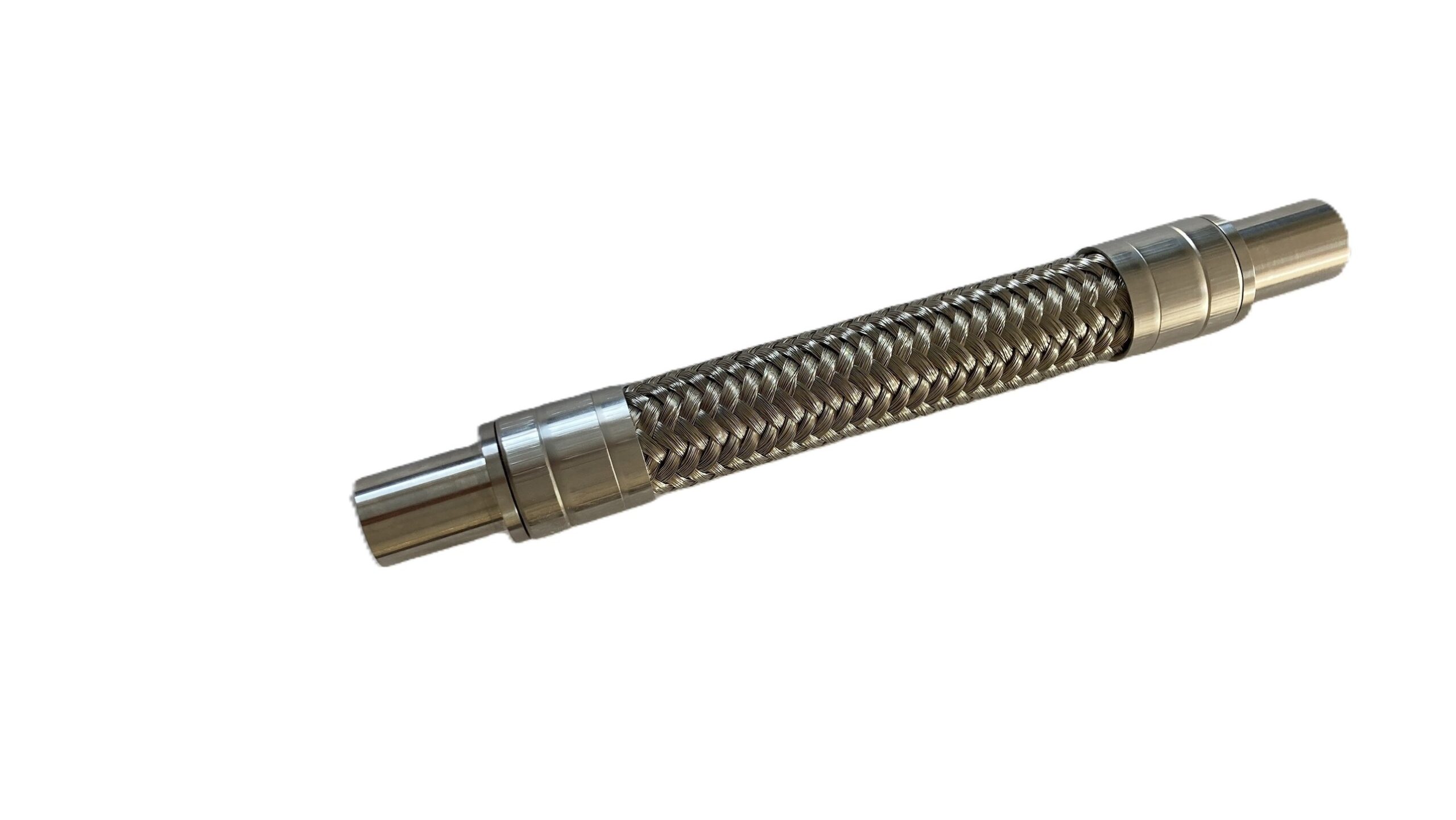

- Stainless steel braided, carbon lined PTFE, high-pressure hose
- Use cases: Aero – hydraulic and pneumatic usage, fuel lines, lubricating oil
- Qualification according to the AS1946 standard
